Brand: WELLFLON
Materials: PTFE (Teflon), Fiberglass, Silicone
Adhesive Type: Organic Silicone Adhesive
Width Range: 1250mm
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +260°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

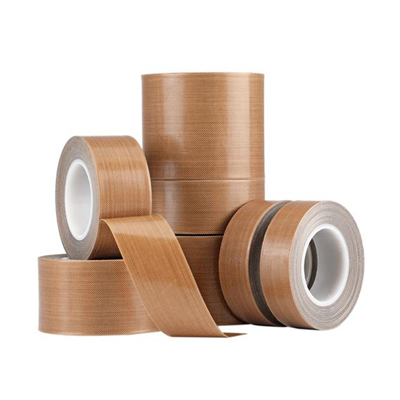

The PTFE fiberglass adhesive tapes are Silicone adhesive coated on PTFE fabric (or pure PTFE membrane) which has been sodium treated on single side. PTFE coated fiberglass adhesive tape has a smooth surface, good anti-adhesion, chemical and high temperature resistance and excellent insulation properties. It is widely used in packaging, thermoplastic, composite, sealing and sealing, electrical and electronic industries. The fabric-reinforced PTFE tape is more resistant to high-strength and can be used repeatedly and easily replaced.
Our company uses imported raw materials to produce a variety of PTFE coated fiberglass adhesive tape of different specifications.
Features of PTFE Fiberglass Adhesive Tapes:
1. Temperature resistance from -70°C to +300°C, with climate resistance and aging resistance.
2. Superior non-stick surface, easy to clean.
3. Excellent chemical resistance. Be Resistant to strong acid, strong alkali, aqua regia and various organic solvents.
4. Non-toxic, and can resist almost all pharmaceutical products
5. High insulating property, anti-UV, anti-static.
6. Fire Proof
7. Easy to apply, long working life.
Applications of PTFE Fiberglass Adhesive Tapes:
1. Coating on all kinds of high temperature rollers, heating plates, stripping pieces.
2. Heat sealing for foods, medicines and plastic package.
3. Can be used repeatedly and easy to be replaced as liners of chutes, hoppers, and aero moulds, also on the sizing machine rollers and demoulding industry.
4. Adapted for the surface treatment of non-adhesive, chemical resistance and temperature resistance.
5. Used in packing, thermoplastic, composite, sealing heat binding, electrical and electronic industries.
Main Specifications of PTFE Fiberglass Adhesive Tapes:
Item | Color | Thickness | Peel Test 260℃(mints) | Adhesive Strength To Steel (N/4cm) | Tensile Strength (N/100mm) | Temperature |
CWF-FA013 | Brown/Black/White | 0.13mm | ≥30 | ≥ 15 | 1800 | -70~260 ℃ |
CWF-FA018 | Brown/Black/White | 0.18mm | ≥30 | ≥ 20 | 2850 | -70~260 ℃ |
CWF-FA020 | Brown/Black/White | 0.20mm | ≥30 | ≥ 22 | 3100 | -70~260 ℃ |
CWF-FA023 | Brown/Black/White | 0.23mm | ≥30 | ≥ 26 | 3400 | -70~260 ℃ |
CWT-FA025 | Brown/Black/White | 0.25mm | ≥30 | ≥ 30 | 3750 | -70~260 ℃ |
CWT-FA030 | Brown/Black/White | 0.30mm | ≥30 | ≥ 35 | 3950 | -70~260 ℃ |
CWT-FA040 | Brown/Black/White | 0.40mm | ≥30 | ≥ 39 | 4500 | -70~260 ℃ |
